Indian field gun
TypeField gun
Place of originIndia
Service history
Used bySee Operators
Production history
DesignerARDE
Designed1972
ManufacturerOrdnance Factory Board
Produced1978–present[1]
VariantsMk-1, Mk-2, truck mounted variant
Specifications
Mass2,380 kg (5,250 lb)
Length5.94 m (19 ft 6 in)
Barrel length2.31 m (7 ft 7 in) L/22
Width2.21 m (7 ft 3 in)
Height1.73 m (5 ft 8 in)

Shell105 x 372 mm R
HE, HESH, HEAT, illuminating, smoke
Caliber105 mm (4.1 in)
BreechHorizontal block
RecoilHydropneumatic, constant, 42 in (110 cm)
Carriagesplit trail
Elevation-5° to +73°
Traverse30° left & right
Muzzle velocity475 m/s (1,560 ft/s)
Maximum firing range17,200 m (10.7 mi) to 20,000 m (12 mi)

The 105 mm Indian field gun is a towed field gun developed in India and extensively used in the Indian Army.

Development

The Armament Research and Development Establishment (ARDE) began the design and development of the gun in 1972 to replace the older 25-pounder guns used by the Indian Army. It was produced in the Gun Carriage Factory (GCF), Jabalpur from 1978 onwards.[1][2][3] In addition to the GCF, the guns have been manufactured at Field Gun Factory, Kanpur. The shells are manufactured at ordnance factories in Ambajhari and Chandrapur.[4] It shares many features with the British L118 light gun. It's suitable to operate in mountainous and other difficult terrains, because this gun has excellent portablitily.[5]

105 mm light field gun prototype being shown at the Pragati Maidan Defence exhibition, New Delhi

Variants

Towed
The Indian field gun (IFG) weighs 3,450 kg (7,610 lb). It has a normal rate of fire of four rounds per minute over ranges from 2,000–17,400 m (6,600–57,100 ft). It can sustain an intense rate of fire of six rounds per minute for up to 10 minutes and a sustained rate of fire for up to one hour. It has a crew of six. The gun has a secondary anti-tank capability. It can operate in temperatures ranging from −27 to +60 °C (−17 to 140 °F). The recoil on firing is absorbed by two side-mounted hydraulic cylinders. A circular platform provided with the gun can be used for rapid 360° movement.[1][6] Manufacture of the Indian Field Gun began in 1978.[1] There are three variants:

  • Indian field gun Mark 1
  • Indian field gun Mark 2
  • Indian field gun Mark 3

The Light field gun (LFG) variant weights 2,380 kg (5,250 lb), but retains the same rate of fire and range as the IFG. The light field gun can be broken down into two or three parts for easy transport and quickly re-assembled. The LFG can be heli-lifted and paradropped.[1][6] The manufacture of the Light Field Gun began in 1984.[6] There are two variants:

  • Light field gun Mark 1
  • Light field gun Mark 2

Self propelled

  • OFB 105 mm SPG – consists of a BMP Sarath hull mounted with a light field gun. It was developed by ordnance development centre, Ordnance Factory Medak, but has not been inducted into the Indian Army.
  • Garuda 105 (version 2) – a 105 mm/37 calibre LFG gun is mounted on tata vehicle's 4X4 wheeled chassis.[7] This gun has all-terrain manoeuvrability (including high altitude). Based on the IFG, this gun has been developed by Kalyani Strategic Systems, a subsidiary of Bharat Forge.[8]

Operators

  •  India : Total 2,400[9][10] field gun's are in service of Indian army,1,700[11] are IFG (Indian field gun) and rest 700[11] are LFG (Light field gun).
  •  Myanmar : 10 in service (aid from India for use against insurgency groups operating from Myanmar)[12]

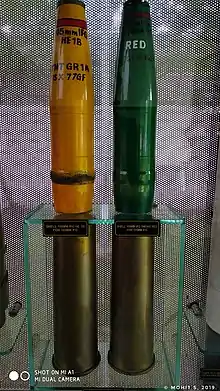

105 mm HE and smoke shell of Indian field gun
