Rub' al Khali Basin
ٱلرُّبْع ٱلْخَالِي
View of the Rub' al Khali Basin
Map showing the location of Rub' al Khali Basin
Map showing the location of Rub' al Khali Basin
Tectonic elements of the Rub' al Khali Basin
Stratigraphic column of the eastern Arabian Peninsula
Coordinates21°00′00″N 51°30′00″E / 21.00000°N 51.50000°E / 21.00000; 51.50000
EtymologyArabic: "empty quarter"
RegionRub' al Khali
Country Saudi Arabia
 Oman
 United Arab Emirates
 Yemen
State(s)Eastern Province, Najran & Riyadh Regions
CitiesNajran
Characteristics
On/OffshoreOnshore
BoundariesCentral Arabian Arch (N), Oman Thrust (E), Northern Hadramaut Arch (S), Arabian Shield (W)
Part ofArabian Desert
Area560,000 km2 (220,000 sq mi)
Hydrology
River(s)Wadis
Lake(s)Occasional saline lakes
Geology
Basin typeActive margin (early Early Cretaceous-recent)
Passive margin (Early-Mid Mesozoic)
Back-arc (Late Paleozoic-Early Mesozoic)
Intracratonic (Proterozoic-Early Paleozoic)
PlateArabian
OrogenyHercynian (Paleozoic)
Break-up of Pangea (Mesozoic)
Zagros-Alpine (Cenozoic)
AgeNeoproterozoic to Holocene
StratigraphyStratigraphy
FaultsNajd Fault System, Dibba Transform Fault
Field(s)Oil: Shaybah, Ramlah
Gas: Kidan

The Rub' al Khali Basin (ٱلرُّبْع ٱلْخَالِي) or ar-Rubʻ al-Khālī / ar-rubʿ al-ḵālī Basin, Arabic for "Empty Quarter Basin", is a major endorheic sedimentary basin of approximately 560,000 square kilometres (220,000 sq mi) in southern Saudi Arabia, northeastern Yemen, southeastern Oman and southeasternmost United Arab Emirates. The onshore foreland on Mesozoic rift basin is geographically defined by the eponymous Rub' al Khali and covers the regions of Najran and Riyadh and the Eastern Province. The basin is geologically bound by the Central Arabian Arch in the north, the Oman Thrust in the east, the Northern Hadramaut Arch in the south, and the Arabian Shield in the west. Politically, the southwestern boundary is formed by the border with Yemen and the border with Oman forms the southeastern boundary.

The stratigraphy of the basin ranges from Proterozoic to recent and comprises various cycles of clastic and carbonate sediments separated by regional unconformities. The stratigraphic column contains various levels of source rock formations, and reservoirs and seals are common in the late Paleozoic and Mesozoic succession. Traps are formed by the compression of the Oman Thrust in the east.

Compared to the petroleum-producing areas to the north of the basin, the Rub' al Khali Basin is relatively underexplored and has two producing oil fields (Shaybah and Ramlah) and a gas field; Kidan. The Total Petroleum System assessment made by the USGS in 2019 analyzed the potential of the basin, with the Silurian Qusaiba and Cretaceous Thamama/Wasia systems as most prolific.

Stratigraphy

The stratigraphy of the Rub' al Khali Basin ranges from the Neoproterozoic, locally referred to as "Infracambrian", to recent deposits. The unconsolidated Quaternary cover is formed by sand dunes in various forms. Saline and freshwater lakes and ponds are rare in the region but sometimes they occur between sand dunes and barchanoid ridges.[1]

AgeGroupFormationLithologiesDepositional environmentMaximum thicknessPetroleum geologyNotes
QuaternaryAlluviumSands, silts and conglomeratesNonpattern dunes, sand sheets, gravel sheets, sabkhas, saline and freshwater lakes and ponds, linear sand dunes, seif dunes, barchan and mega barchan dunes, barchanoid ridges, star dunes900 m (3,000 ft)Overburden
PlioceneDibdibbaOverburden
MioceneHofufOverburden
DamOverburden
HadrukhOverburden
OligoceneOligocene unconformity
EoceneHasaDammamOverburden
RusOverburden
PaleoceneUmm Er RadhumaOverburden
Late CretaceousArumaArumaReservoir, seal
Late CretaceousWasiaMishrif - NatihReservoir
RumallaSource, seal
AhmadiReservoir
WaraSeal
MauddudReservoir, seal
Nahr Umr
Early CretaceousThamamaShu'aibaSource, reservoir
Hawar
Kharaib
RatawiReservoir
Yamama
SulaiySource
Late JurassicRiyadhHithSeal
ArabReservoir
Middle JurassicJuballahReservoir
HanifaReservoir
Tuwaiq MountainSource
Early JurassicDhrumaReservoir, seal, source
MarratSource
El SirrUpper MinjurLateritesDeltaic to coastalReservoir
TriassicLower MinjurConglomerates, sandstones and intercalated shalesAlluvial fans to shallow marineReservoir, seal
Jilh - GullalahFine-grained clastics and dolomitic mudstonesContinental to near-shoreReservoir
SudairSilty and gypsiferous shalesShallow marineSource
PermianKhuffDolomites, limestones, sandstones, shales, evaporitesShallow marine to intertidal900 m (3,000 ft)Reservoir, seal, source
Late CarboniferousUnayzahReservoir, source, seal
Early-Mid CarboniferousPre-Unayzah unconformity
DevonianJubah
DevonianJaufSource
DevonianTawilSeal
SilurianQalibah - SharawraReservoir
SilurianQusaibaBlack shaleSource, seal
OrdovicianQasim
TurongianSaq
Pre-Saq unconformity
Early-Mid CambrianHuqfAraHaliteSeal
NeoproterozoicJubaylahMetasediments

Basin evolution

The overall history of the Rub' al Khali Basin goes back to the Proterozoic ("Precambrian"). The first regional tectonic signature in history is recorded as the end-Ediacaran unconformity, followed by the pre-Siq unconformity affecting the western and southwestern edges of the basin.[21] Throughout the earlier periods of the Paleozoic, the intracratonic basin went through an extensional tectonic phase, which ended with a regional Carboniferous unconformity, representing the Hercynian orogenic compressional stage.[22] From the Early Permian onwards, the basin experienced back-arc extension on the edge of Gondwana, leading to the formation of the regional Khuff Formation with anhydrite and halite deposition. This tectonic regime gradually transitioned into a passive margin setting with the opening of the Neo-Tethys in the Early Triassic.[4]

During the early Mesozoic, this tectonic quiescent stage remained active, laying down the majority of the sedimentary sequence, including the main reservoirs of the succession. Following the tectonic subsidence at the border of the shallow Tethys Ocean, the basin experienced its first compressional stage in the earliest Early Cretaceous, represented to the south of the basin by the Northern Hadramaut Arch.[23] To the east of the Rub' al-Khali Basin, this resulted in the obduction of the Semail Ophiolite, an oceanic crustal sequence which today is widely studied in the Oman Mountains. Two stages of tectonic uplift are noted towards the end of the Cenomanian (around 94 Ma, close to the Cenomanian-Turonian turnover) and in the middle Santonian, approximately 80 Ma.[24] This phase of ophiolite obduction lasted until Middle to Late Eocene times. The active compression caused by the Alpine orogeny and represented in the Middle Eastern territories by the Zagros fold and thrust belt, continued in the late Paleogene and Neogene, with the main phase of uplift lasting from about 25 to 18 Ma.[25] The Quaternary overburden section of the active margin stage of the basin contains sands, silts, clays, and conglomerates deposited in sand dunes (ergs) and sabkhas. The sequence is disturbed by the impact of various meteorites in a series of craters known as the Wabar craters.

Petroleum geology

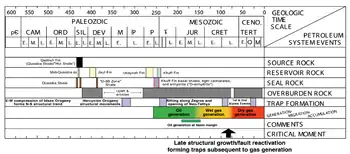

Petroleum systems events chart for central Arabia

Petroleum exploration in Saudi Arabia commenced in 1937 with the acquisition of seismic surveys, continuing until the end of the 20th century. This has resulted in almost complete coverage of the main producing areas. One of the most successful methods used is the long-range refraction profile using the Hith anhydrite as the refractor.[26]

The Rub' al Khali Basin comprises various petroleum systems, defined as Total Petroleum Systems (TPS) by the United States Geological Survey (USGS), from most to least extensive in the basin:[27]

  1. Silurian Qusaiba (201903)
  2. Cretaceous Thamama/Wasia (201901)
  3. Jurassic Hanifa/Diyab-Arab (201902)
  4. Arabian Sub-Basin Tuwaiq/Hanifa-Arab (202102)
  5. Central Arabia Qusaiba-Paleozoic (202101)
  6. North Oman Huqf-Shu'aiba (201601)
  7. North Oman Huqf/'Q'-Haushi (201401)
  8. Middle Cretaceous Natih (201602)

The North Oman Huqf/'Q'-Haushi TPS extends diagonally across the central portion of the Makaram-Mabrouk high portion of the Central Oman Platform, into the Ghaba Salt Basin.[28]

The main total petroleum system of the basin centers around the Ordovician to Silurian Qusaiba Formation as source rock, charging the Permian Khuff Formation, with minor reservoirs the Silurian Tawil, Devonian Jubah and Carboniferous Unayzah Formations, all sealed by overlying shaly and evaporite levels, with as main regional seal the evaporites of the Khuff. Structural traps are formed by the compression from the east during the Late Cretaceous and Paleogene to Neogene. The critical moment for oil has been estimated to the Jurassic-Cretaceous boundary and for gas during the Late Cretaceous.[29]

Petroleum exploration and production

Oil exploration work started in the Rub' al Khali Basin in the 1950s. Until 1990, only two oil fields were discovered by Saudi Aramco, the Shaybah and Ramlah Field, adjacent to the border with Abu Dhabi. The estimated original recoverable oil reserves of the Shaybah Field, which was discovered in 1968 are 1.828 billion barrels. The reservoir for both fields is in the Lower Cretaceous Shu'aiba Formation. In addition to the discovery of those two oil fields, the Kidan gas field was discovered in the same area in 1967. Gas accumulations were found in the Arab C, D, and Jubaila Formations of the Jurassic. The estimated recoverable gas reserves of this field are 3.3 billion cubic metres.[30]

A 2019 USGS study on the basin concluded that the Rub' al Khali Basin could contain 242 undiscovered oil fields, ranging from 0.64 to 1,300 million cubic metres (4 to 8,192 million barrels) of oil,[31] and a mean number of 267 gas fields with estimated volumes between 0.68 and 2,800 billion cubic metres (24 and 98,304 billion cubic feet) .[32]
