Alkimos

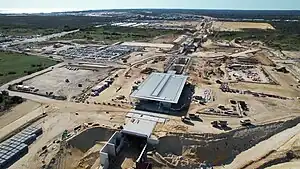

Sandy construction site with concrete station in the middle
Alkimos station construction in August 2023
General information
LocationAlkimos, Western Australia
Australia
Coordinates31°36′52″S 115°41′33″E / 31.614446°S 115.692399°E / -31.614446; 115.692399 (Alkimos Station)
Owned byPublic Transport Authority
Operated byTransperth Train Operations
Line(s)     Joondalup line
Platforms2 side platforms
Tracks2
Bus stands8
ConnectionsBus
Construction
Structure typeCutting
ParkingApproximately 600 bays
Bicycle facilitiesYes
AccessibleYes
Other information
StatusUnder construction
Fare zone5
History
OpeningEarly 2024
Passengers
Predicted3,616 per day in 2031
Services
Preceding station Transperth Transperth Following station
Under construction
Butler
towards Elizabeth Quay
 Joondalup line Eglinton
towards Yanchep
Location
Location of Alkimos station

Alkimos railway station is an under-construction commuter rail station in Alkimos, Western Australia. The station is being constructed as part of the Yanchep rail extension of Transperth's Joondalup line, and is planned to open in early-2024.

Description

Alkimos station is in Alkimos, a suburb of Perth in Western Australia. It is located north of Romeo Road and east of Marmion Avenue in an area undeveloped as of construction.[1] The station is in fare zone five.[2] The adjacent stations are Butler to the south and Eglinton to the north.[3]

The station will consist of two side platforms sunk into a cutting. On top of the platforms will be a large ground-level concourse, which will connect down to the platform by a set of lifts, escalators, and stairs. North of the station itself will be a bus interchange with eight stands on top of the railway, and further north, on either side of the railway will be two car parks with 600 bays in total. Other facilities will include parking for bicycles and toilets. The station will be fully accessible.[3]

Unlike the other stations on the Yanchep Rail Extension, the land surrounding Alkimos station is government owned and will be developed by LandCorp. Alkimos and Eglinton combined are planned to have a population of 60,000 when they are fully developed, and the land around the station, known as "Alkimos Central", is planned to become a "city centre' for the surrounding area, with 15,000 jobs.[4][5][6]

History

The original stage of the Joondalup line began construction in November 1989.[7] It was opened between Perth station and Joondalup station on 20 December 1992,[8] and extended to Currambine station on 8 August 1993.[9] An extension to Clarkson station opened on 4 October 2004[10] and an extension to Butler station opened on 21 September 2014.[11][12]

To cater for continuous population growth in the northern suburbs of Perth, in 2017, the government initiated the Yanchep rail extension, an extension of the Joondalup line 14.5 kilometres (9.0 mi) to Yanchep, with three new stations: Alkimos, Eglinton, and Yanchep. The Yanchep rail extension was part of the government's wider Metronet project to expand and upgrade Perth's rail network, and was delivered by the Public Transport Authority (PTA). The PTA chose to put the Yanchep rail extension under the same contract as the Thornlie–Cockburn Link.[3] The contract for the Yanchep rail extension and the Thornlie–Cockburn Link was awarded to the NEWest Alliance, a joint venture of CPB Contractors and Downer.[13][14]

Drone shot of a sandy construction site with concrete retaining walls and bridges
Alkimos station viewed from a drone in February 2023

Earthworks for the Yanchep rail extension began in mid-2020.[15] Designs for Alkimos station were revealed in August 2020.[16] The first major concrete pour for Alkimos station occurred in March 2021.[17] By October 2022, construction of the platform and concourse had begun.[18] By May 2023, the station's four escalators had been installed.[19]

Opening

The Yanchep rail extension was originally meant to open in late 2021.[3] This was first delayed to 2022. After the September 2021 state budget, the extension was delayed to late-2023.[20][21][22] After the May 2023 state budget, the government said that the Yanchep extension "is due for completion at the end of 2023, with services commencing in the new year".[23] As of the end of 2023, the Yanchep extension is still under construction and services are planned to commence in the first half of 2024.[24][25]

Services

Alkimos station will be served by the Joondalup line on the Transperth network.[26] Services are operated by the PTA through its Transperth Train Operations division.[27] The line will go between Yanchep and Elizabeth Quay station in the Perth central business district, continuing south from there as the Mandurah line.[26] It is expected that a train journey would take 41 minutes from Alkimos to Perth. It is projected that Alkimos station will have 3,616 boardings per day by 2031.[3]
