Casad Dam

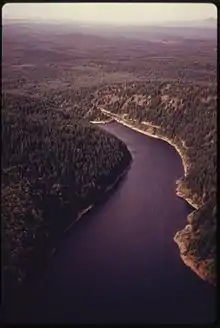

Casad Dam (near center) and Union River reservoir
Casad Dam is located in Washington (state)
Casad Dam
Location of Casad Dam in Washington (state)
CountryUnited States
LocationBremerton, Washington
Coordinates47°32′17″N 122°46′47″W / 47.53806°N 122.77972°W / 47.53806; -122.77972
PurposeMunicipal water supply[1]
StatusOperational
Construction began1955
Opening date1957
Construction cost$1.4 million[2]
Owner(s)City of Bremerton
Dam and spillways
Type of damConcrete arch
ImpoundsUnion River
Height190 ft (58 m)
Length416 ft (127 m)
Elevation at crest643.7 ft (196.2 m)
Width (base)56 ft (17 m)
Reservoir
CreatesUnion River Reservoir
Total capacity1,400,000,000 US gal (5,300,000 m3)
Catchment area3,000 acres (1,200 ha)
Surface area40 acres (16 ha)
Normal elevation607 ft (185 m)[3]
Coordinates from USGS,[4] specifications from factsheet[5] unless noted

Casad Dam is a concrete arch dam in Bremerton, Kitsap County, Washington), built starting in 1955 and completed in 1957.[6][7]

The dam is Kitsap County's only major water diversion structure,[8] impounding Union River to form a reservoir that is the source of over half of Bremerton's municipal water supply.[5] The water is gravity fed from the reservoir at 607 feet (185 m) in the hills[3] to the city, most of which is at or near sea level.[9]

Bremerton owns 95% of the land in its 3,000-acre (1,200 ha) watershed, and the Union River reservoir behind Casad Dam holds 1,400,000,000 US gallons (5,300,000 m3) of water.[6] The city is unusual in drawing most of its water supply from an open air source, the reservoir, which can occasionally be affected by algal blooms.[10]

The dam's intake tower underwent seismic retrofit in 2012 to withstand a 0.78 g peak acceleration in a maximum credible earthquake from the Seattle Fault which runs about four miles (7 km) away, on the north side of Green Mountain.[11][12]
