ECC DIMMs typically have nine memory chips on each side, one more than usually found on non-ECC DIMMs (some modules may have 5 or 18).[1]

Error correction code memory (ECC memory) is a type of computer data storage that uses an error correction code[lower-alpha 1] (ECC) to detect and correct n-bit data corruption which occurs in memory. ECC memory is used in most computers where data corruption cannot be tolerated, like industrial control applications, critical databases, and infrastructural memory caches.

Typically, ECC memory maintains a memory system immune to single-bit errors: the data that is read from each word is always the same as the data that had been written to it, even if one of the bits actually stored has been flipped to the wrong state. Most non-ECC memory cannot detect errors, although some non-ECC memory with parity support allows detection but not correction.

Description

Error correction codes protect against undetected data corruption and are used in computers where such corruption is unacceptable, examples being scientific and financial computing applications, or in database and file servers. ECC can also reduce the number of crashes in multi-user server applications and maximum-availability systems.

Electrical or magnetic interference inside a computer system can cause a single bit of dynamic random-access memory (DRAM) to spontaneously flip to the opposite state. It was initially thought that this was mainly due to alpha particles emitted by contaminants in chip packaging material, but research has shown that the majority of one-off soft errors in DRAM chips occur as a result of background radiation, chiefly neutrons from cosmic ray secondaries, which may change the contents of one or more memory cells or interfere with the circuitry used to read or write to them.[2] Hence, the error rates increase rapidly with rising altitude; for example, compared to sea level, the rate of neutron flux is 3.5 times higher at 1.5 km and 300 times higher at 10-12 km (the cruising altitude of commercial airplanes).[3] As a result, systems operating at high altitudes require special provisions for reliability.

As an example, the spacecraft Cassini–Huygens, launched in 1997, contained two identical flight recorders, each with 2.5 gigabits of memory in the form of arrays of commercial DRAM chips. Due to built-in EDAC functionality, the spacecraft's engineering telemetry reported the number of (correctable) single-bit-per-word errors and (uncorrectable) double-bit-per-word errors. During the first 2.5 years of flight, the spacecraft reported a nearly constant single-bit error rate of about 280 errors per day. However, on November 6, 1997, during the first month in space, the number of errors increased by more than a factor of four on that single day. This was attributed to a solar particle event that had been detected by the satellite GOES 9.[4]

There was some concern that as DRAM density increases further, and thus the components on chips get smaller, while operating voltages continue to fall, DRAM chips will be affected by such radiation more frequently, since lower-energy particles will be able to change a memory cell's state.[3] On the other hand, smaller cells make smaller targets, and moves to technologies such as SOI may make individual cells less susceptible and so counteract, or even reverse, this trend. Recent studies[5] show that single-event upsets due to cosmic radiation have been dropping dramatically with process geometry and previous concerns over increasing bit cell error rates are unfounded.

Research

Work published between 2007 and 2009 showed widely varying error rates with over 7 orders of magnitude difference, ranging from 10−10 error/bit·h (roughly one bit error per hour per gigabyte of memory) to 10−17 error/bit·h (roughly one bit error per millennium per gigabyte of memory).[5][6][7] A large-scale study based on Google's very large number of servers was presented at the SIGMETRICS/Performance '09 conference.[6] The actual error rate found was several orders of magnitude higher than the previous small-scale or laboratory studies, with between 25,000 (2.5 × 10−11 error/bit·h) and 70,000 (7.0 × 10−11 error/bit·h, or 1 bit error per gigabyte of RAM per 1.8 hours) errors per billion device hours per megabit. More than 8% of DIMM memory modules were affected by errors per year.

The consequence of a memory error is system-dependent. In systems without ECC, an error can lead either to a crash or to corruption of data; in large-scale production sites, memory errors are one of the most-common hardware causes of machine crashes.[6] Memory errors can cause security vulnerabilities.[6] A memory error can have no consequences if it changes a bit which neither causes observable malfunctioning nor affects data used in calculations or saved. A 2010 simulation study showed that, for a web browser, only a small fraction of memory errors caused data corruption, although, as many memory errors are intermittent and correlated, the effects of memory errors were greater than would be expected for independent soft errors.[8]

Some tests conclude that the isolation of DRAM memory cells can be circumvented by unintended side effects of specially crafted accesses to adjacent cells. Thus, accessing data stored in DRAM causes memory cells to leak their charges and interact electrically, as a result of high cell density in modern memory, altering the content of nearby memory rows that actually were not addressed in the original memory access. This effect is known as row hammer, and it has also been used in some privilege escalation computer security exploits.[9][10]

An example of a single-bit error that would be ignored by a system with no error-checking, would halt a machine with parity checking, or would be invisibly corrected by ECC: a single bit is stuck at 1 due to a faulty chip, or becomes changed to 1 due to background or cosmic radiation; a spreadsheet storing numbers in ASCII format is loaded, and the character "8" (decimal value 56 in the ASCII encoding) is stored in the byte that contains the stuck bit at its lowest bit position; then, a change is made to the spreadsheet and it is saved. As a result, the "8" (00111000 binary) has silently become a "9" (00111001).

Solutions

Several approaches have been developed to deal with unwanted bit-flips, including immunity-aware programming, RAM parity memory, and ECC memory.

This problem can be mitigated by using DRAM modules that include extra memory bits and memory controllers that exploit these bits. These extra bits are used to record parity or to use an error-correcting code (ECC). Parity allows the detection of all single-bit errors (actually, any odd number of wrong bits). The most-common error correcting code, a single-error correction and double-error detection (SECDED) Hamming code, allows a single-bit error to be corrected and (in the usual configuration, with an extra parity bit) double-bit errors to be detected. Chipkill ECC is a more effective version that also corrects for multiple bit errors, including the loss of an entire memory chip.

Implementations

In 1982 this 512KB memory board from Cromemco used 22 bits of storage per 16 bit word to allow for single-bit error correction.

Seymour Cray famously said "parity is for farmers" when asked why he left this out of the CDC 6600.[11] Later, he included parity in the CDC 7600, which caused pundits to remark that "apparently a lot of farmers buy computers". The original IBM PC and all PCs until the early 1990s used parity checking.[12] Later ones mostly did not.

An ECC-capable memory controller can generally[lower-alpha 1] detect and correct errors of a single bit per word[lower-alpha 2] (the unit of bus transfer), and detect (but not correct) errors of two bits per word. The BIOS in some computers, when matched with operating systems such as some versions of Linux, BSD, and Windows (Windows 2000 and later[13]), allows counting of detected and corrected memory errors, in part to help identify failing memory modules before the problem becomes catastrophic.

Some DRAM chips include "internal" on-chip error correction circuits, which allow systems with non-ECC memory controllers to still gain most of the benefits of ECC memory.[14][15] In some systems, a similar effect may be achieved by using EOS memory modules.

Error detection and correction depends on an expectation of the kinds of errors that occur. Implicitly, it is assumed that the failure of each bit in a word of memory is independent, resulting in improbability of two simultaneous errors. This used to be the case when memory chips were one-bit wide, what was typical in the first half of the 1980s; later developments moved many bits into the same chip. This weakness is addressed by various technologies, including IBM's Chipkill, Sun Microsystems' Extended ECC, Hewlett-Packard's Chipspare, and Intel's Single Device Data Correction (SDDC).

DRAM memory may provide increased protection against soft errors by relying on error correcting codes. Such error-correcting memory, known as ECC or EDAC-protected memory, is particularly desirable for high fault-tolerant applications, such as servers, as well as deep-space applications due to increased radiation. Some systems also "scrub" the memory, by periodically reading all addresses and writing back corrected versions if necessary to remove soft errors.

Interleaving allows for distribution of the effect of a single cosmic ray, potentially upsetting multiple physically neighboring bits across multiple words by associating neighboring bits to different words. As long as a single event upset (SEU) does not exceed the error threshold (e.g., a single error) in any particular word between accesses, it can be corrected (e.g., by a single-bit error correcting code), and an effectively error-free memory system may be maintained.[16]

Error-correcting memory controllers traditionally use Hamming codes, although some use triple modular redundancy (TMR). The latter is preferred because its hardware is faster than that of Hamming error correction scheme.[16] Space satellite systems often use TMR,[17][18][19] although satellite RAM usually uses Hamming error correction.[20]

Many early implementations of ECC memory mask correctable errors, acting "as if" the error never occurred, and only report uncorrectable errors. Modern implementations log both correctable errors (CE) and uncorrectable errors (UE). Some people proactively replace memory modules that exhibit high error rates, in order to reduce the likelihood of uncorrectable error events.[21]

Many ECC memory systems use an "external" EDAC circuit between the CPU and the memory. A few systems with ECC memory use both internal and external EDAC systems; the external EDAC system should be designed to correct certain errors that the internal EDAC system is unable to correct.[14] Modern desktop and server CPUs integrate the EDAC circuit into the CPU,[22] even before the shift toward CPU-integrated memory controllers, which are related to the NUMA architecture. CPU integration enables a zero-penalty EDAC system during error-free operation.

As of 2009, the most-common error-correction codes use Hamming or Hsiao codes that provide single-bit error correction and double-bit error detection (SEC-DED). Other error-correction codes have been proposed for protecting memory  double-bit error correcting and triple-bit error detecting (DEC-TED) codes, single-nibble error correcting and double-nibble error detecting (SNC-DND) codes, Reed–Solomon error correction codes, etc. However, in practice, multi-bit correction is usually implemented by interleaving multiple SEC-DED codes.[23][24]

Early research attempted to minimize the area and delay overheads of ECC circuits. Hamming first demonstrated that SEC-DED codes were possible with one particular check matrix. Hsiao showed that an alternative matrix with odd weight columns provides SEC-DED capability with less hardware area and shorter delay than traditional Hamming SEC-DED codes. More recent research also attempts to minimize power in addition to minimizing area and delay.[25][26][27]

Cache

Many CPUs use error-correction codes in the on-chip cache, including the Intel Itanium, Xeon, Core and Pentium (since P6 microarchitecture)[28][29] processors, the AMD Athlon, Opteron, all Zen-[30] and Zen+-based[31] processors (EPYC, EPYC Embedded, Ryzen and Ryzen Threadripper), and the DEC Alpha 21264.[23][32]

As of 2006, EDC/ECC and ECC/ECC are the two most-common cache error-protection techniques used in commercial microprocessors. The EDC/ECC technique uses an error-detecting code (EDC) in the level 1 cache. If an error is detected, data is recovered from ECC-protected level 2 cache. The ECC/ECC technique uses an ECC-protected level 1 cache and an ECC-protected level 2 cache.[33] CPUs that use the EDC/ECC technique always write-through all STOREs to the level 2 cache, so that when an error is detected during a read from the level 1 data cache, a copy of that data can be recovered from the level 2 cache.

Registered memory

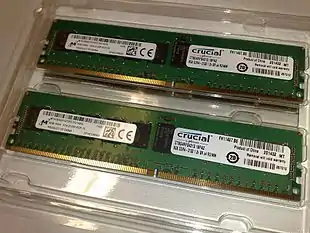

Two 8 GB DDR4-2133 ECC 1.2 V RDIMMs

Registered, or buffered, memory is not the same as ECC; the technologies perform different functions. It is usual for memory used in servers to be both registered, to allow many memory modules to be used without electrical problems, and ECC, for data integrity. Memory used in desktop computers is usually neither, for economy. However, unbuffered (not-registered) ECC memory is available,[34] and some non-server motherboards support ECC functionality of such modules when used with a CPU that supports ECC.[35] Registered memory does not work reliably in motherboards without buffering circuitry, and vice versa.

Advantages and disadvantages

Ultimately, there is a trade-off between protection against unusual loss of data and a higher cost.

ECC memory usually involves a higher price when compared to non-ECC memory, due to additional hardware required for producing ECC memory modules, and due to lower production volumes of ECC memory and associated system hardware. Motherboards, chipsets and processors that support ECC may also be more expensive.

ECC support varies among motherboard manufacturers so ECC memory may simply not be recognized by a ECC-incompatible motherboard. Most motherboards and processors for less critical applications are not designed to support ECC. Some ECC-enabled boards and processors are able to support unbuffered (unregistered) ECC, but will also work with non-ECC memory; system firmware enables ECC functionality if ECC memory is installed.

ECC may lower memory performance by around 2–3 percent on some systems, depending on the application and implementation, due to the additional time needed for ECC memory controllers to perform error checking.[36] However, modern systems integrate ECC testing into the CPU, generating no additional delay to memory accesses as long as no errors are detected.[22][37][38]

ECC supporting memory may contribute to additional power consumption due to error correcting circuitry.

Notes

  1. 1 2 Most ECC memory uses a SECDED code.
  2. While 72-bit word with 64 data bits and 8 checking bits are common, ECC is also used with smaller and larger sizes.
