The flat-plane crank (sometimes flatplane) is a type of crankshaft for use in internal combustion engines that has a 180 degree angle between crank throws.[1]

Details

Flat-plane cranks are used in V-configuration engines, generally with eight cylinders.[1] Cadillac introduced a V8 flat-plane crank engine in 1923.[2][3]

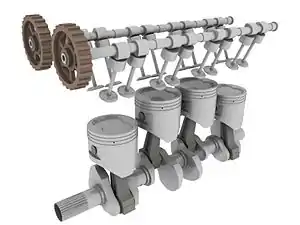

Computer generated image showing the major internal moving parts of an inline-four engine, including the flat-plane crankshaft.

Inline-four cylinder engines almost all use flat-plane cranks, and thus are not usually identified as such. However, there are a few exceptions with crossplane cranks.

Front view of a V8 flat plane crankshaft with corresponding connecting rod positions

The flat-plane crankshaft is a design that is no longer used in most mass production V engines as it is more prone to vibration and is inherently much louder than a crossplane crankshaft. However, due to its simpler construction requiring less counterweight, it is inherently lighter with a higher rev limit. For this reason, it remains useful in sports and racing cars.[1] Flat-plane crankshafts are generally associated with European sports cars such as Ferrari and Lotus V8 engines, and cross-plane cranks with American manufacturers. There are some exceptions such as the Ferrari-designed crossplane crank V8 of the Lancia Thema 8.32 and the flat-plane crank Ford Mustang GT350. A notable exception as its not a sports car but does have a Ferrari derived flat plane engine is the Maserati Quattroporte V with its 4.2 and 4.7 litre versions. [4] The 2023 model year Chevrolet Corvette Z06 will have the largest flat-plane V8 ever seen in production cars at 5.5 litres.[5]

The way in which a flat-plane works within a V8 engine is more like two in-line 4-cylinder engines mated together,[1] with the firing order of each order being in a Right-Left-Right-Left-Right-Left-Right-Left pattern.[6] Being in this in-line configuration allows for the engine to rev much faster, making it more suitable for racing engines.
