Highliner | |
---|---|
In service | Highliner: 1971–2016 Highliner II: 2005–present |
Manufacturer | Highliner: St. Louis Car Company, Bombardier Highliner II: Nippon Sharyo |
Family name | Highliner Highliner II: Budd Gallery car |
Constructed | Highliner: 1971, 1978–1979 Highliner II: 2005–2006, 2012–2016 |
Number built | St Louis: 130 Bombardier: 36 Nippon: 201+ |
Number preserved | Approx. 24 |
Number scrapped | Most First Generation cars scrapped, second generation cars still in service |
Formation | Married pairs |
Fleet numbers | 1201–1226, 1501–1663 (Metra) 301–314 (NICTD) |
Operators | Illinois Central, Metra, NICTD |
Lines served | Metra Electric, South Shore Line |
Specifications | |
Car body construction | Highliner: carbon steel Highliner II : stainless steel |
Car length | Highliner: 85 feet (25.91 m) Highliner II: 85 feet (25.91 m) |
Width | Highliner: 10.5 feet (3.20 m) Highliner II: 9.82 feet (2.99 m) |
Height | Highliner: 15.83 feet (4.82 m) (to roof) Highliner II: 15.87 feet (4.84 m) |
Floor height | Highliner: 4.298 feet (1.31 m) |
Doors | Highliner: 1 end vestibule, 2 center Highliner II: 2 center |
Maximum speed | Highliner: 80 mph (130 km/h) Highliner II: 79 mph (127 km/h) |
Weight | Highliner: 140,000 lb (64,000 kg) (empty) Highliner II: 148,000 lb (67,000 kg) (empty) |
Traction motors | Highliner: 1258 DC motor (GE) |
Power output | Highliner: 150 hp (110 kW) continuous, 160 hp (120 kW) maximum 1-hr rating per motor (4 per car) |
Acceleration | Highliner: 1.36 mph/s (2.19 km/(h⋅s)) |
Deceleration | Highliner: 1.5 mph/s (2.4 km/(h⋅s)) |
HVAC | Electric heat, air conditioning |
Electric system(s) | 1,500 V DC overhead lines |
Current collector(s) | Pantograph |
UIC classification | Bo’Bo’+Bo’Bo’ |
AAR wheel arrangement | B-B+B-B |
Bogies | Highliner: Outboard Bearing GSI 70 |
Braking system(s) | Pneumatic, dynamic |
Coupling system | Tomlinson |
Track gauge | 4 ft 8+1⁄2 in (1,435 mm) standard gauge |
The Highliner is a bilevel electric multiple unit (EMU) railcar. The original series of railcars were built in 1971 by the St. Louis Car Company for commuter service on the Illinois Central Railroad, in south Chicago, Illinois, with an additional batch later produced by Bombardier. A second generation featuring a completely new design was produced by Nippon Sharyo beginning in 2005.
History
In 1926, the Illinois Central's commuter rail lines were electrified, and began operating as the "IC Electric". For almost 40 years, the IC Electric continued to operate the original fleet of heavyweight cars, until the railroad decided that a more modern railcar was needed to improve commuter operations. The Chicago South Suburban Mass Transit District was formed in 1967 in order to qualify for federal funding to purchase new equipment for the route. The original 130 car Highliner fleet had a cost of approximately $40 million; $26.6 million was funded by a federal grant, with the remainder coming from the Illinois Central.[1] The railcars operated on electric catenary, and were more efficient than their heavyweight predecessors. A typical Highliner was able to seat 156 passengers, and run faster than the heavyweight fleet.
In 1976, the newly formed Regional Transportation Authority began to fund the IC Electric commuter service. In 1983, the RTA created Metra, Chicago's commuter rail service, and in 1987, Metra purchased the IC Electric line, forming the Metra Electric Line.

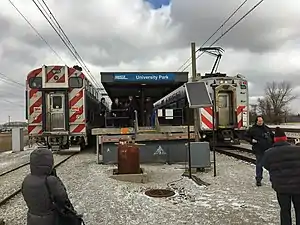

An additional batch of 36 Highliners was built from 1978 to 1979 by the Bombardier company. Starting in 2005, the aged original fleet, which was increasingly prone to breakage and experiencing soaring maintenance costs, began to be phased out. They were replaced by new Highliners built by Nippon Sharyo of Japan, the same company that is currently in charge of production of Metra's fleet of gallery cars. The last revenue run of the original Highliner cars was on February 12, 2016. Metra confirmed in a Facebook post that twenty-four cars are being sent to museums around the Midwestern United States, including the Illinois Railway Museum, while the other cars were sent to Mendota, Illinois to be scrapped.[2]
Highliner II
The Nippon Sharyo Highliners are similar in appearance to the gallery cars used on Metra's diesel lines. The South Shore Line, which operates on the Metra Electric from Millennium Station to Kensington/115th Street before diverging east to Indiana, also purchased and operates the Highliner II to supplement its fleet of EMUs.[3]
- A second generation Nippon Sharyo Highliner on Metra Electric at Bryn Mawr.
- A second generation Metra Nippon Sharyo Highliner at Millennium Station.
- A second generation South Shore Line Nippon Sharyo Highliner at Millennium Station.
Fleet
Car Numbers | Initial User | Year built | Builder | Notes |
---|---|---|---|---|
1227-1386 | Metra | 2012–2016 | Nippon Sharyo | |
1201-1226 | 2005–2006 | |||
301-314 | NICTD | 2008–2009 | ||
1631-1666 | RTA | 1978–1979 | Bombardier | |
1501-1630 | Illinois Central | 1971–1972 | St. Louis | Car #1509 destroyed in 1972 Chicago train collision |
