Kintetsu 9020 series

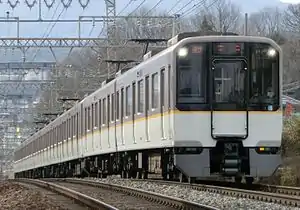

A 9020 series on the Nara Line in January 2014
ManufacturerKinki Sharyo
Family nameSeries 21
Constructed2000–2008
Entered service2000
Number built40 vehicles (20 sets)
Number in service40 vehicles (20 sets)
Formation2 cars per trainset
Fleet numbersEE21 EE39, EW51
OperatorsKintetsu Railway
DepotsHigashihanazono, Takayasu
Lines served
Specifications
Car body constructionAluminium
Car length20,720 mm (68 ft 0 in)
Height4,150 mm (13 ft 7 in)
Doors4 pairs per side
Maximum speed110 km/h (68.4 mph)
Traction systemVariable frequency (IGBT)
Power output185 kW per motor
Acceleration2.5–3.0 km/(h⋅s) (1.6–1.9 mph/s)
Deceleration4.0 km/(h⋅s) (2.5 mph/s)
Electric system(s)1,500 V DC
Current collector(s)Overhead line
BogiesKD-311
Braking system(s)Electronically controlled pneumatic brakes
Safety system(s)Kintetsu ATS (old/new)
Hanshin ATS (except 9050 series)
Track gauge1,435 mm (4 ft 8+12 in)

The Kintetsu 9020 series (近鉄9020系) is an electric multiple unit (EMU) commuter train type operated by the private railway operator Kintetsu Railway since 2000.[1] In 2001, it was awarded the Laurel Prize, presented annually by the Japan Railfan Club.

Operations

The 9020 series sets operate on Nara Line services, including through-running to and from Hanshin Electric Railway lines. One 9050 series variant operates on Osaka Line services.[1]

Formations

As of 1 April 2012, the fleet consists of 20 two-car sets, with 19 based at Higashihanazono Depot for Nara Line services, and one set based at Takayasu Depot for use on Osaka Line services.[2]

Higashihanazono Depot sets

The two-car Nara Line sets are formed as follows, with one motored (M) car and one non-powered trailer (T) car, and the "Mc" car at the Namba/Kyoto end.[2]

Designation McTc
Numbering Mo 9020Ku 9120

The "Mc" car is fitted with two cross-arm or single-arm pantographs.[2]

Takayasu Depot set

The sole two-car Osaka Line set, 9051, is formed as follows, with one motored (M) car and one non-powered trailer (T) car, and the "Tc" car at the Osaka Uehommachi end.[2]

Designation TcMc
Numbering Ku 9151Mo 9051

The "Mc" car is fitted with two single-arm pantographs.[2]

Interior

Passenger accommodation consists of longitudinal bench seating throughout.[1]
