South Geelong
PTV regional rail station

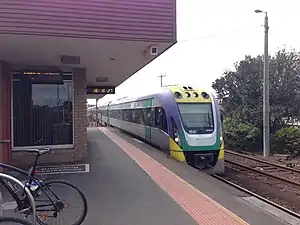

Westbound view, with a Waurn Ponds bound VLocity train arriving, in January 2017
General information
Location	Yarra Street, South Geelong, Victoria 3220 City of Greater Geelong Australia
Coordinates	38°09′31″S 144°21′32″E / 38.1585°S 144.3589°E / -38.1585; 144.3589
Owned by	VicTrack
Operated by	V/Line
Line(s)	Geelong Warrnambool (Port Fairy)
Distance	74.41 kilometres from Southern Cross
Platforms	1
Tracks	2
Connections	Bus
Construction
Structure type	Ground
Parking	Yes
Bicycle facilities	Yes
Accessible	Yes
Other information
Status	Operational, staffed
Station code	SGL
Fare zone	Myki Zone 4
Website	Public Transport Victoria
History
Opened	1 November 1883 (1883-11-01)
Rebuilt	30 September 1984
Passengers
2013-2014	499,815[1]
2014-2015	475,834[1]  4.8%
2015-2016	504,384[1]  6.1%
2016-2017	527,263[1]  4.56%
Services
Preceding station V/Line Following station Geelong towards Southern Cross Geelong line Marshall towards Waurn Ponds Warrnambool line Limited service Marshall towards Warrnambool
Track layout to Geelong Geelong Tunnel McKillop Street Kilgour Street Yarra Street 1 Swanston Street Former Queenscliff Line Fyans Street (Removing by 2024) Barwon Terrace to Marshall
Location
South Geelong Location within Victoria

South Geelong railway station is located on the Warrnambool line in Victoria, Australia. It serves the southern Geelong suburb of South Geelong, and it opened on 1 November 1883.^[2][3]

History

The railway line to Winchelsea opened on 25 November 1876. Prior to the establishment of the station, the site was used as a loading point for ballast and bluestone by the contractor building the Queenscliff railway line.^[4]

A timber station building was provided at opening. Opposite the station was a loop siding, longer than the platform, and behind the station was a dead end siding. Around 1887 or 1888, the siding was extended and a goods shed provided.^[4]

A list of signals, dated around 1899, showed South Geelong having two home signals and two starters. In March 1900, the staff and ticket system between the sections Geelong - Queenscliff Junction - Mount Moriac, was replaced by the electric staff system. However, the station appeared to remain a block post between there and Geelong, apparently so that trains could wait at the station, instead of at Queenscliff Junction.^[4]

On 5 August 1901, Queenscliff Junction was abolished, with a new line being built parallel with the old line, effectively making South Geelong the junction for Queenscliff. An interlocking frame was also provided around that time, with the station building being partially rebuilt to accommodate the frame. After that, the large electric staff section was then Geelong "D" signal box - South Geelong - Mount Moriac, while the branch staff and ticket section became South Geelong - Drysdale.^[4]

Alterations to arrangements for the Geelong Showgrounds and the Geelong Racecourse took place a few years later. The racecourse, which was served by a short railway branch from Connewarre, moved to its present site in 1907, as well as the Showgrounds. They were served by a new siding and station. In 1912, the platform was extended at its eastern (down) end, to accommodate the increasing length of trains. Similar platform extensions occurred at most stations along the line during the same year. During that time, the level crossing at nearby Moorabool Street was grade separated, by providing a rail overpass over the road. A temporary loop was provided, to allow trains to operate during works, with the arrangement operating until February 1913.^[4]

1914 saw alterations in the goods yard. The former Bellerine Street level crossing was closed, and replaced by a pedestrian overpass (now removed). That enabled the yard to be enlarged, by providing two long sidings parallel to the main running line in the down direction, with a connection for down trains at the end of the platform. The sidings were brought into use in December 1914.^[4]

In 1921, the station became a depot for gravel from the Gherang pits, which were located on the short Wensleydale branch line. Other industries along the nearby Barwon River used South Geelong as a base to receive their supplies. Seven years later, on 20 June 1928, Geelong - South Geelong was converted to miniature electric staff working, with South Geelong - Racecourse - Moriac converted on 18 September of that year. An automatic staff exchanger was provided around 1930.^[4]

The crossing of trains at the station was generally avoided because of a lack of appropriate crossing facilities. Trains were only timed to cross there on special occasions, such as holiday periods. For example; on 24 December 1927, the 10.20 Warrnambool passenger service, due at South Geelong at 12.03, was due to cross the 09.35 passenger train from Camperdown, due at 12.02, and had to "wait for P3", P3 being the Warrnambool service. The train was then to wait on the Queenscliff branch line, subject to Rule 15 of Appendix VII, of the Book of Rules and Regulations. Therefore, the train, which had to wait, stood at the up home signal. That also prevented South Geelong giving Drysdale an electric staff for trains to approach, while a train waited for a cross, or shunting trains onto the branch line, while another train was approaching. On 1 June 1931, passenger services ceased on the Queenscliff line, and, a week later, the miniature electric staff was abolished. Drysdale was abolished as a staff station, and the staff and ticket system was re-introduced between South Geelong and Queenscliff.^[4]

Gates at the nearby Swanston Street level crossing were provided in 1914. In 1934, the gatekeeper was given control, via a ground frame, of two arms on "Post 3". The gatekeeper also controlled two arms above the bracket distant signal on "Post 5". That arrangement lasted until 1976, when flashing lights were provided.^[4] Boom barriers were provided later on in 2009.^[5]

The former State Electricity Commission (SECV) opened a briquette depot in the South Geelong yard in 1940, with two new sidings provided. In March of that year, the siding was extended by about 200 yards (180 m), with the staff-locked connection between the siding and the main line also extended. That proved beneficial for trains using the station to move passenger traffic to football games at nearby Kardinia Park, located nearby in Moorabool Street. Up to seven trains could be held in the yard.^[4]

On 29 September 1959, siding "A", directly opposite the station, was abolished.^[4] The run-round loop was re-instated in 1982.^[6]

Commencing on 4 November 1968, local passenger services from Geelong were extended to South Geelong, and a car park was established on part of the goods yard. Initially, one train each way was provided during morning and afternoon peaks, usually followed by an empty car movement. By 1979, the number of local services to and from South Geelong had increased to eight a day, in both directions.^[4]

In 1982, siding "A" was re-instated, and extended across the Yarra Street level crossing. The down end crossover was moved about approximately 175 feet (53 m). The down home signal was also moved. The points from the platform to the goods siding, by then rarely used, and no longer holding empty-car trains, could be Annett locked. The automatic staff exchanger was also removed during 1982. The former Queenscliff branch, which closed in 1976, was then effectively siding "B". The controls for the down and up home signals were removed, and distant signal "Post 7", in siding "B", was reduced to a single distant arm.^[4]

In October 1983, the original timber station building was demolished, and replaced by the present station building, which opened on 30 September 1984.^[3] Two years later, in February 1986, boom barriers replaced the hand-operated gates at the Yarra Street level crossing.^[7] Further signalling alterations occurred in 1989 and 1992.^[2][8]

Today, South Geelong is staffed from first train to last,^[9] and is served by a majority of commuter Geelong trains. The former railway branch line to Queenscliff is now occupied by the Bellarine Rail Trail as far as Drysdale, and the Bellarine Peninsula Railway between Drysdale and Queenscliff.

The former Geelong Racecourse station was located between South Geelong and Marshall stations. The last service to use the station was for the 2005 Geelong Cup. In February 2011, the loop siding serving the former platform was disconnected from the main line, as part of a sleeper renewal program.^[10] On 1 March of that year, the loop siding was abolished, effectively closing the station.^[11]

As part of the Regional Rail Revival project, the station is to be rebuilt, and will include a new second platform, a new pedestrian overpass, a new station building to replace the existing structure and an upgraded forecourt, upgraded car parking spaces, upgrades to lighting and CCTV and better connections to nearby Kardinia Park.^[12] As part of these works, the railway line between Waurn Ponds and South Geelong is also to be duplicated.^[13]

Platforms and services

South Geelong has one platform. It is serviced by V/Line Geelong line and selected Warrnambool line services.^[14][15] A number of services terminate at South Geelong, but the majority continue to Waurn Ponds.

Platform 1:

•  Geelong line  services to Marshall, Waurn Ponds and Southern Cross
•  Warrnambool line  one weekday evening and weekend services to Warrnambool and Southern Cross

Platform 2:

•  Geelong line  Future service
•  Warrnambool line  Future service

Transport links

CDC Geelong operates one route via South Geelong station, under contract to Public Transport Victoria:

•  1 : North Shore station – Deakin University Waurn Ponds Campus^[16]
