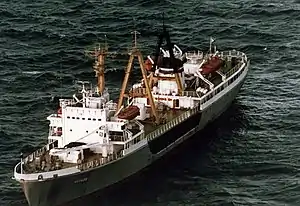

Sheksna on 1 June 1993
Class overview
NameProject 577 (NATO: Uda Class)
BuildersVyborg
Operators
Built1962–1967
In commission1962–present
Completed9
General characteristics
TypeReplenishment oiler
Displacement7,100 tons full load
Length121.9 m (399 ft 11 in)
Beam16.0 m (52 ft 6 in)
Draught6.3 m (20 ft 8 in)
Propulsion
  • 2 Type 58D diesels
  • 8,000 bhp (6,000 kW)
  • 1 shaft
Speed17 knots (31 km/h; 20 mph)
Range4,000 nmi (7,400 km; 4,600 mi) at 15 knots (28 km/h; 17 mph)
Endurance30-days
Capacity
  • 2,000 tons fuel oil
  • 800 tons distillate fuel
  • 100 tons lube oil
  • 300 tons feedwater
  • 200 tons potable water
  • 100 tons stores
Complement74
Sensors and
processing systems
  • 2 Don-2 (navigation)
  • 1 Palm Frond (navigation)
Electronic warfare
& decoys		IFF
Armamentremoved

The Uda class, Soviet designation Project 577, is a class of replenishment oiler built for the Soviet Navy between 1962 and 1967.

Construction

Project 577 vessels were built at the Vyborg, USSR shipyard during the 1960s and were designated VTR Voyenyy Tanker, Military Tanker) by the Soviet Navy. They are capable of replenishment at sea and an A-frame kingpost provides two amidships refueling positions. They are also capable of refueling over the stern.[1][2][3]

The Project 577 is similar in design to a US Navy AO fleet tanker or a Royal Fleet Auxiliary fleet support tanker and performs the same operational role. Unlike US or British vessels of this type, the Project 577 does not have facilities for helicopters and is incapable of vertical replenishment.[4][5][6]

There are provisions for fitting eight ZIF-75 57mm AA guns in quad mounts, plus one MR-302 Strut Curve and two MR-103 Bars radar, but no weapons systems have been reported fitted to the Uda class since the 1960s.[7][8][9]

Ships in class

There were nine vessels in the class.[10][11][12]

NameYard No.Laid DownLaunchedCommissionedFate
TerekNo. 751not knownnot knownJuly 1962
Sheksnanot knownnot knownnot knownDecember 1962sold to commercial 1996
Donnot knownnot knownnot known1963to Indonesia Balikpapan
Donetsnot knownnot knownnot knownSeptember 1964to Indonesia Pangkalan Brandan
Dneprnot knownnot knownnot knownOctober 1964to Indonesia Wonokromo
Dunaynot knownnot knownnot knownDecember 1965No information about activity, probably decommissioned
Koydanot knownnot knownnot knownFebruary 1966Probably decommissioned[13]
LenaNo. 755not knownnot knownDecember 1966
Visheranot knownnot knownnot knownJune 1967
