First invention

As a child, Bell displayed a curiosity about his world; he gathered botanical specimens and ran experiments at an early age. His best friend was Ben Herdman, a neighbour whose family operated a flour mill. At the age of 12, Bell built a homemade device that combined rotating paddles with sets of nail brushes, creating a simple dehusking machine that was put into operation at the mill and used steadily for a number of years.^[21] In return, Ben's father John Herdman gave both boys the run of a small workshop in which to "invent".^[21]

From his early years, Bell showed a sensitive nature and a talent for art, poetry, and music that was encouraged by his mother. With no formal training, he mastered the piano and became the family's pianist.^[22] Despite being normally quiet and introspective, he revelled in mimicry and "voice tricks" akin to ventriloquism that continually entertained family guests during their occasional visits.^[22] Bell was also deeply affected by his mother's gradual deafness (she began to lose her hearing when he was 12), and learned a manual finger language so he could sit at her side and tap out silently the conversations swirling around the family parlour.^[23] He also developed a technique of speaking in clear, modulated tones directly into his mother's forehead wherein she would hear him with reasonable clarity.^[24] Bell's preoccupation with his mother's deafness led him to study acoustics.

His family was long associated with the teaching of elocution: his grandfather, Alexander Bell, in London, his uncle in Dublin, and his father, in Edinburgh, were all elocutionists. His father published a variety of works on the subject, several of which are still well known, especially his The Standard Elocutionist (1860),^[22] which appeared in Edinburgh in 1868. The Standard Elocutionist appeared in 168 British editions and sold over a quarter of a million copies in the United States alone. In this treatise, his father explains his methods of how to instruct deaf-mutes (as they were then known) to articulate words and read other people's lip movements to decipher meaning. Bell's father taught him and his brothers not only to write Visible Speech but to identify any symbol and its accompanying sound.^[25] Bell became so proficient that he became a part of his father's public demonstrations and astounded audiences with his abilities. He could decipher Visible Speech representing virtually every language, including Latin, Scottish Gaelic, and even Sanskrit, accurately reciting written tracts without any prior knowledge of their pronunciation.^[25]

Education

As a young child, Bell, like his brothers, received his early schooling at home from his father. At an early age, he was enrolled at the Royal High School, Edinburgh, which he left at the age of 15, having completed only the first four forms.^[26] His school record was undistinguished, marked by absenteeism and lacklustre grades. His main interest remained in the sciences, especially biology, while he treated other school subjects with indifference, to the dismay of his father.^[27] Upon leaving school, Bell travelled to London to live with his grandfather, Alexander Bell, on Harrington Square. During the year he spent with his grandfather, a love of learning was born, with long hours spent in serious discussion and study. The elder Bell took great efforts to have his young pupil learn to speak clearly and with conviction, the attributes that his pupil would need to become a teacher himself.^[28] At the age of 16, Bell secured a position as a "pupil-teacher" of elocution and music, in Weston House Academy at Elgin, Moray, Scotland. Although he was enrolled as a student in Latin and Greek, he instructed classes himself in return for board and £10 per session.^[29] The following year, he attended the University of Edinburgh, joining his older brother Melville who had enrolled there the previous year. In 1868, not long before he departed for Canada with his family, Bell completed his matriculation exams and was accepted for admission to University College London.^[30]

First experiments with sound

His father encouraged Bell's interest in speech and, in 1863, took his sons to see a unique automaton developed by Sir Charles Wheatstone based on the earlier work of Baron Wolfgang von Kempelen.^[31] The rudimentary "mechanical man" simulated a human voice. Bell was fascinated by the machine and after he obtained a copy of von Kempelen's book, published in German, and had laboriously translated it, he and his older brother Melville built their own automaton head. Their father, highly interested in their project, offered to pay for any supplies and spurred the boys on with the enticement of a "big prize" if they were successful.^[31] While his brother constructed the throat and larynx, Bell tackled the more difficult task of recreating a realistic skull. His efforts resulted in a remarkably lifelike head that could "speak", albeit only a few words.^[31] The boys would carefully adjust the "lips" and when a bellows forced air through the windpipe, a very recognizable Mama ensued, to the delight of neighbours who came to see the Bell invention.^[32]

Intrigued by the results of the automaton, Bell continued to experiment with a live subject, the family's Skye Terrier, Trouve.^[33] After he taught it to growl continuously, Bell would reach into its mouth and manipulate the dog's lips and vocal cords to produce a crude-sounding "Ow ah oo ga ma ma". With little convincing, visitors believed his dog could articulate "How are you, grandmama?^[34]" Indicative of his playful nature, his experiments convinced onlookers that they saw a "talking dog".^[35] These initial forays into experimentation with sound led Bell to undertake his first serious work on the transmission of sound, using tuning forks to explore resonance.

At age 19, Bell wrote a report on his work and sent it to philologist Alexander Ellis, a colleague of his father.^[35] Ellis immediately wrote back indicating that the experiments were similar to existing work in Germany, and also lent Bell a copy of Hermann von Helmholtz's work, The Sensations of Tone as a Physiological Basis for the Theory of Music.^[36]

Dismayed to find that groundbreaking work had already been undertaken by Helmholtz who had conveyed vowel sounds by means of a similar tuning fork "contraption", Bell pored over the German scientist's book. Working from his own erroneous mistranslation of a French edition,^[37] Bell fortuitously then made a deduction that would be the underpinning of all his future work on transmitting sound, reporting: "Without knowing much about the subject, it seemed to me that if vowel sounds could be produced by electrical means, so could consonants, so could articulate speech." He also later remarked: "I thought that Helmholtz had done it ... and that my failure was due only to my ignorance of electricity. It was a valuable blunder ... If I had been able to read German in those days, I might never have commenced my experiments!"^{[38][39][40][N 5]}

Family tragedy

In 1865, when the Bell family moved to London,^[41] Bell returned to Weston House as an assistant master and, in his spare hours, continued experiments on sound using a minimum of laboratory equipment. Bell concentrated on experimenting with electricity to convey sound and later installed a telegraph wire from his room in Somerset College to that of a friend.^[42] Throughout late 1867, his health faltered mainly through exhaustion. His younger brother, Edward "Ted", was similarly affected by tuberculosis. While Bell recovered (by then referring to himself in correspondence as "A. G. Bell") and served the next year as an instructor at Somerset College, Bath, England, his brother's condition deteriorated. Edward would never recover. Upon his brother's death, Bell returned home in 1867. His older brother Melville had married and moved out. With aspirations to obtain a degree at University College London, Bell considered his next years as preparation for the degree examinations, devoting his spare time at his family's residence to studying.

Helping his father in Visible Speech demonstrations and lectures brought Bell to Susanna E. Hull's private school for the deaf in South Kensington, London. His first two pupils were deaf-mute girls who made remarkable progress under his tutelage. While his older brother seemed to achieve success on many fronts including opening his own elocution school, applying for a patent on an invention, and starting a family, Bell continued as a teacher. However, in May 1870, Melville died from complications due to tuberculosis, causing a family crisis. His father had also experienced a debilitating illness earlier in life and had been restored to health by a convalescence in Newfoundland. Bell's parents embarked upon a long-planned move when they realized that their remaining son was also sickly. Acting decisively, Alexander Melville Bell asked Bell to arrange for the sale of all the family property,^{[43][N 6]} conclude all of his brother's affairs (Bell took over his last student, curing a pronounced lisp),^[44] and join his father and mother in setting out for the "New World". Reluctantly, Bell also had to conclude a relationship with Marie Eccleston, who, as he had surmised, was not prepared to leave England with him.^[45]

The race to the patent office

In 1875, Bell developed an acoustic telegraph and drew up a patent application for it. Since he had agreed to share U.S. profits with his investors Gardiner Hubbard and Thomas Sanders, Bell requested that an associate in Ontario, George Brown, attempt to patent it in Britain, instructing his lawyers to apply for a patent in the U.S. only after they received word from Britain (Britain would issue patents only for discoveries not previously patented elsewhere).^[85]

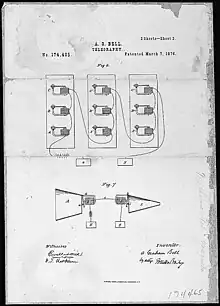

Alexander Graham Bell's telephone patent^[86] drawing, March 7, 1876

Meanwhile, Elisha Gray was also experimenting with acoustic telegraphy and thought of a way to transmit speech using a water transmitter. On February 14, 1876, Gray filed a caveat with the U.S. Patent Office for a telephone design that used a water transmitter. That same morning, Bell's lawyer filed Bell's application with the patent office. There is considerable debate about who arrived first and Gray later challenged the primacy of Bell's patent. Bell was in Boston on February 14 and did not arrive in Washington until February 26.

The master telephone patent, 174465, March 7, 1876

Bell's patent 174,465, was issued to Bell on March 7, 1876, by the U.S. Patent Office. Bell's patent covered "the method of, and apparatus for, transmitting vocal or other sounds telegraphically ... by causing electrical undulations, similar in form to the vibrations of the air accompanying the said vocal or other sound"^{[87][N 14]} Bell returned to Boston the same day and the next day resumed work, drawing in his notebook a diagram similar to that in Gray's patent caveat.

On March 10, 1876, three days after his patent was issued, Bell succeeded in getting his telephone to work, using a liquid transmitter similar to Gray's design. Vibration of the diaphragm caused a needle to vibrate in the water, varying the electrical resistance in the circuit. When Bell spoke the sentence "Mr. Watson—Come here—I want to see you" into the liquid transmitter,^[88] Watson, listening at the receiving end in an adjoining room, heard the words clearly.^[89]

Although Bell was, and still is, accused of stealing the telephone from Gray,^[90] Bell used Gray's water transmitter design only after Bell's patent had been granted, and only as a proof of concept scientific experiment,^[91] to prove to his own satisfaction that intelligible "articulate speech" (Bell's words) could be electrically transmitted.^[92] After March 1876, Bell focused on improving the electromagnetic telephone and never used Gray's liquid transmitter in public demonstrations or commercial use.^[93]

The question of priority for the variable resistance feature of the telephone was raised by the examiner before he approved Bell's patent application. He told Bell that his claim for the variable resistance feature was also described in Gray's caveat. Bell pointed to a variable resistance device in his previous application in which he described a cup of mercury, not water. He had filed the mercury application at the patent office a year earlier on February 25, 1875, long before Elisha Gray described the water device. In addition, Gray abandoned his caveat, and because he did not contest Bell's priority, the examiner approved Bell's patent on March 3, 1876. Gray had reinvented the variable resistance telephone, but Bell was the first to write down the idea and the first to test it in a telephone.^[94]

The patent examiner, Zenas Fisk Wilber, later stated in an affidavit that he was an alcoholic who was much in debt to Bell's lawyer, Marcellus Bailey, with whom he had served in the Civil War. He claimed he showed Gray's patent caveat to Bailey. Wilber also claimed (after Bell arrived in Washington D.C. from Boston) that he showed Gray's caveat to Bell and that Bell paid him $100 (equivalent to $2,700 in 2022). Bell claimed they discussed the patent only in general terms, although in a letter to Gray, Bell admitted that he learned some of the technical details. Bell denied in an affidavit that he ever gave Wilber any money.^[95]

Later developments

An actor playing Bell in a 1926 film holds Bell's first telephone transmitter.

On March 10, 1876, Bell used "the instrument" in Boston to call Thomas Watson who was in another room but out of earshot. He said, "Mr. Watson, come here – I want to see you" and Watson soon appeared at his side.^[96]

Continuing his experiments in Brantford, Bell brought home a working model of his telephone. On August 3, 1876, from the telegraph office in Brantford, Ontario, Bell sent a tentative telegram to the village of Mount Pleasant four miles (six kilometres) distant, indicating that he was ready. He made a telephone call via telegraph wires and faint voices were heard replying. The following night, he amazed guests as well as his family with a call between the Bell Homestead and the office of the Dominion Telegraph Company in Brantford along an improvised wire strung up along telegraph lines and fences, and laid through a tunnel. This time, guests at the household distinctly heard people in Brantford reading and singing. The third test on August 10, 1876, was made via the telegraph line between Brantford and Paris, Ontario, eight miles (thirteen kilometres) distant. This test was said by many sources to be the "world's first long-distance call".^[97][98] The final test certainly proved that the telephone could work over long distances, at least as a one-way call. ^[99]

The first two-way (reciprocal) conversation over a line occurred between Cambridge and Boston (roughly 2.5 miles) on October 9, 1876.^[100] During that conversation, Bell was on Kilby Street in Boston and Watson was at the offices of the Walworth Manufacturing Company.^[101]

Bell at the opening of the long-distance line from New York to Chicago in 1892

Bell and his partners, Hubbard and Sanders, offered to sell the patent outright to Western Union for $100,000, equal to $2,748,125 today. The president of Western Union balked, countering that the telephone was nothing but a toy. Two years later, he told colleagues that if he could get the patent for $25 million (equal to $758,103,448 today), he would consider it a bargain. By then, the Bell company no longer wanted to sell the patent.^[102] Bell's investors would become millionaires while he fared well from residuals and at one point had assets of nearly one million dollars.^[103]

Bell began a series of public demonstrations and lectures to introduce the new invention to the scientific community as well as the general public. A short time later, his demonstration of an early telephone prototype at the 1876 Centennial Exposition in Philadelphia brought the telephone to international attention.^[104] Influential visitors to the exhibition included Emperor Pedro II of Brazil. One of the judges at the Exhibition, Sir William Thomson (later, Lord Kelvin), a renowned Scottish scientist, described the telephone as "the greatest by far of all the marvels of the electric telegraph".^[105]

On January 14, 1878, at Osborne House, on the Isle of Wight, Bell demonstrated the device to Queen Victoria,^[106] placing calls to Cowes, Southampton and London. These were the first publicly witnessed long-distance telephone calls in the UK. The queen considered the process to be "quite extraordinary" although the sound was "rather faint".^[107] She later asked to buy the equipment that was used, but Bell offered to make "a set of telephones" specifically for her.^[108][109]

The Bell Telephone Company was created in 1877, and by 1886, more than 150,000 people in the U.S. owned telephones. Bell Company engineers made numerous other improvements to the telephone, which emerged as one of the most successful products ever. In 1879, the Bell company acquired Edison's patents for the carbon microphone from Western Union. This made the telephone practical for longer distances, and it was no longer necessary to shout to be heard at the receiving telephone.

Emperor Pedro II of Brazil was the first person to buy stock in Bell's company, the Bell Telephone Company. One of the first telephones in a private residence was installed in his palace in Petrópolis, his summer retreat forty miles (sixty-four kilometres) from Rio de Janeiro.^[110]

In January 1915, Bell made the first ceremonial transcontinental telephone call. Calling from the AT&T head office at 15 Dey Street in New York City, Bell was heard by Thomas Watson at 333 Grant Avenue in San Francisco. The New York Times reported:

On October 9, 1876, Alexander Graham Bell and Thomas A. Watson talked by telephone to each other over a two-mile wire stretched between Cambridge and Boston. It was the first wire conversation ever held. Yesterday afternoon [on January 25, 1915], the same two men talked by telephone to each other over a 3,400-mile wire between New York and San Francisco. Dr. Bell, the veteran inventor of the telephone, was in New York, and Mr. Watson, his former associate, was on the other side of the continent.^[111]

Competitors

As is sometimes common in scientific discoveries, simultaneous developments can occur, as evidenced by a number of inventors who were at work on the telephone.^[112] Over a period of 18 years, the Bell Telephone Company faced 587 court challenges to its patents, including five that went to the U.S. Supreme Court,^[113] but none was successful in establishing priority over the original Bell patent,^[114][115] and the Bell Telephone Company never lost a case that had proceeded to a final trial stage.^[114] Bell's laboratory notes and family letters were the key to establishing a long lineage to his experiments.^[114] The Bell company lawyers successfully fought off myriad lawsuits generated initially around the challenges by Elisha Gray and Amos Dolbear. In personal correspondence to Bell, both Gray and Dolbear had acknowledged his prior work, which considerably weakened their later claims.^[116]

On January 13, 1887, the U.S. Government moved to annul the patent issued to Bell on the grounds of fraud and misrepresentation. After a series of decisions and reversals, the Bell company won a decision in the Supreme Court, though a couple of the original claims from the lower court cases were left undecided.^[117][118] By the time that the trial wound its way through nine years of legal battles, the U.S. prosecuting attorney had died and the two Bell patents (No. 174,465 dated March 7, 1876, and No. 186,787 dated January 30, 1877) were no longer in effect, although the presiding judges agreed to continue the proceedings due to the case's importance as a precedent. With a change in administration and charges of conflict of interest (on both sides) arising from the original trial, the US Attorney General dropped the lawsuit on November 30, 1897, leaving several issues undecided on the merits.^[119]

During a deposition filed for the 1887 trial, Italian inventor Antonio Meucci also claimed to have created the first working model of a telephone in Italy in 1834. In 1886, in the first of three cases in which he was involved,^{[N 15]} Meucci took the stand as a witness in the hope of establishing his invention's priority. Meucci's testimony in this case was disputed due to a lack of material evidence for his inventions, as his working models were purportedly lost at the laboratory of American District Telegraph (ADT) of New York, which was later incorporated as a subsidiary of Western Union in 1901.^[120][121] Meucci's work, like many other inventors of the period, was based on earlier acoustic principles and despite evidence of earlier experiments, the final case involving Meucci was eventually dropped upon Meucci's death.^[122] However, due to the efforts of Congressman Vito Fossella, the U.S. House of Representatives on June 11, 2002, stated that Meucci's "work in the invention of the telephone should be acknowledged".^{[123][124][125]} This did not put an end to the still-contentious issue.^[126] Some modern scholars do not agree with the claims that Bell's work on the telephone was influenced by Meucci's inventions.^{[127][N 16]}

The value of the Bell patent was acknowledged throughout the world, and patent applications were made in most major countries, but when Bell delayed the German patent application, the electrical firm of Siemens & Halske set up a rival manufacturer of Bell telephones under their own patent. The Siemens company produced near-identical copies of the Bell telephone without having to pay royalties.^[128] The establishment of the International Bell Telephone Company in Brussels, Belgium in 1880, as well as a series of agreements in other countries eventually consolidated a global telephone operation. The strain put on Bell by his constant appearances in court, necessitated by the legal battles, eventually resulted in his resignation from the company.^{[129][N 17]}

Photophone

Photophone receiver, one half of Bell's wireless optical communication system, ca. 1880

Bell and his assistant Charles Sumner Tainter jointly invented a wireless telephone, named a photophone, which allowed for the transmission of both sounds and normal human conversations on a beam of light.^[151][152] Both men later became full associates in the Volta Laboratory Association.

On June 21, 1880, Bell's assistant transmitted a wireless voice telephone message a considerable distance, from the roof of the Franklin School in Washington, D.C., to Bell at the window of his laboratory, some 700 feet (213 m) away, 19 years before the first voice radio transmissions.^{[153][154][155][156]}

Bell believed the photophone's principles were his life's "greatest achievement", telling a reporter shortly before his death that the photophone was "the greatest invention [I have] ever made, greater than the telephone".^[157] The photophone was a precursor to the fiber-optic communication systems which achieved popular worldwide usage in the 1980s.^[158][159] Its master patent was issued in December 1880, many decades before the photophone's principles came into popular use.

Metal detector

Bell is also credited with developing one of the early versions of a metal detector through the use of an induction balance, after the shooting of U.S. President James A. Garfield in 1881. According to some accounts, the metal detector worked flawlessly in tests but did not find Guiteau's bullet, partly because the metal bed frame on which the President was lying disturbed the instrument, resulting in static.^[160] Garfield's surgeons, led by self-appointed chief physician Doctor Willard Bliss, were skeptical of the device, and ignored Bell's requests to move the President to a bed not fitted with metal springs.^[160] Alternatively, although Bell had detected a slight sound on his first test, the bullet may have been lodged too deeply to be detected by the crude apparatus.^[160]

Bell's own detailed account, presented to the American Association for the Advancement of Science in 1882, differs in several particulars from most of the many and varied versions now in circulation, by concluding that extraneous metal was not to blame for failure to locate the bullet. Perplexed by the peculiar results he had obtained during an examination of Garfield, Bell "proceeded to the Executive Mansion the next morning ... to ascertain from the surgeons whether they were perfectly sure that all metal had been removed from the neighborhood of the bed. It was then recollected that underneath the horse-hair mattress on which the President lay was another mattress composed of steel wires. Upon obtaining a duplicate, the mattress was found to consist of a sort of net of woven steel wires, with large meshes. The extent of the [area that produced a response from the detector] having been so small, as compared with the area of the bed, it seemed reasonable to conclude that the steel mattress had produced no detrimental effect." In a footnote, Bell adds, "The death of President Garfield and the subsequent post-mortem examination, however, proved that the bullet was at too great a distance from the surface to have affected our apparatus."^[161]

Hydrofoils

Bell's HD-4 on a test run ca. 1919

The March 1906 Scientific American article by American pioneer William E. Meacham explained the basic principle of hydrofoils and hydroplanes. Bell considered the invention of the hydroplane as a very significant achievement. Based on information gained from that article, he began to sketch concepts of what is now called a hydrofoil boat. Bell and assistant Frederick W. "Casey" Baldwin began hydrofoil experimentation in the summer of 1908 as a possible aid to airplane takeoff from water. Baldwin studied the work of the Italian inventor Enrico Forlanini and began testing models. This led him and Bell to the development of practical hydrofoil watercraft.

During his world tour of 1910–11, Bell and Baldwin met with Forlanini in France. They had rides in the Forlanini hydrofoil boat over Lake Maggiore. Baldwin described it as being as smooth as flying. On returning to Baddeck, a number of initial concepts were built as experimental models, including the Dhonnas Beag (Scottish Gaelic for 'little devil'), the first self-propelled Bell-Baldwin hydrofoil.^[162] The experimental boats were essentially proof-of-concept prototypes that culminated in the more substantial HD-4, powered by Renault engines. A top speed of 54 miles per hour (87 km/h) was achieved, with the hydrofoil exhibiting rapid acceleration, good stability, and steering, along with the ability to take waves without difficulty.^[163] In 1913, Dr. Bell hired Walter Pinaud, a Sydney yacht designer and builder as well as the proprietor of Pinaud's Yacht Yard in Westmount, Nova Scotia, to work on the pontoons of the HD-4. Pinaud soon took over the boatyard at Bell Laboratories on Beinn Bhreagh, Bell's estate near Baddeck, Nova Scotia. Pinaud's experience in boatbuilding enabled him to make useful design changes to the HD-4. After the First World War, work began again on the HD-4. Bell's report to the U.S. Navy permitted him to obtain two 350-horsepower (260-kilowatt) engines in July 1919. On September 9, 1919, the HD-4 set a world marine speed record of 70.86 miles per hour (114.04 kilometres per hour),^[164] a record which stood for ten years.

Aeronautics

AEA Silver Dart c. 1909

In 1891, Bell had begun experiments to develop motor-powered heavier-than-air aircraft. The AEA was first formed as Bell shared the vision to fly with his wife, who advised him to seek "young" help as Bell was at the age of 60.

In 1898, Bell experimented with tetrahedral box kites and wings constructed of multiple compound tetrahedral kites covered in maroon silk.^{[N 21]} The tetrahedral wings were named Cygnet I, II, and III, and were flown both unmanned and manned (Cygnet I crashed during a flight carrying Selfridge) in the period from 1907 to 1912. Some of Bell's kites are on display at the Alexander Graham Bell National Historic Site.^[166]

Bell was a supporter of aerospace engineering research through the Aerial Experiment Association (AEA), officially formed at Baddeck, Nova Scotia, in October 1907 at the suggestion of his wife Mabel and with her financial support after the sale of some of her real estate.^[167] The AEA was headed by Bell and the founding members were four young men: American Glenn H. Curtiss, a motorcycle manufacturer at the time and who held the title "world's fastest man", having ridden his self-constructed motor bicycle around in the shortest time, and who was later awarded the Scientific American Trophy for the first official one-kilometre flight in the Western hemisphere, and who later became a world-renowned airplane manufacturer; Lieutenant Thomas Selfridge, an official observer from the U.S. Federal government and one of the few people in the army who believed that aviation was the future; Frederick W. Baldwin, the first Canadian and first British subject to pilot a public flight in Hammondsport, New York; and J. A. D. McCurdy–Baldwin and McCurdy being new engineering graduates from the University of Toronto.^[168]

The AEA's work progressed to heavier-than-air machines, applying their knowledge of kites to gliders. Moving to Hammondsport, the group then designed and built the Red Wing, framed in bamboo and covered in red silk and powered by a small air-cooled engine.^[169] On March 12, 1908, over Keuka Lake, the biplane lifted off on the first public flight in North America.^{[N 22][N 23]} The innovations that were incorporated into this design included a cockpit enclosure and tail rudder (later variations on the original design would add ailerons as a means of control). One of the AEA's inventions, a practical wingtip form of the aileron, was to become a standard component on all aircraft.^{[N 24]} The White Wing and June Bug were to follow and by the end of 1908, over 150 flights without mishap had been accomplished. However, the AEA had depleted its initial reserves and only a $15,000 grant from Mrs. Bell allowed it to continue with experiments.^[170] Lt. Selfridge had also become the first person killed in a powered heavier-than-air flight in a crash of the Wright Flyer at Fort Myer, Virginia, on September 17, 1908.

Their final aircraft design, the Silver Dart, embodied all of the advancements found in the earlier machines. On February 23, 1909, Bell was present as the Silver Dart flown by J. A. D. McCurdy from the frozen ice of Bras d'Or made the first aircraft flight in Canada.^[171] Bell had worried that the flight was too dangerous and had arranged for a doctor to be on hand. With the successful flight, the AEA disbanded and the Silver Dart would revert to Baldwin and McCurdy, who began the Canadian Aerodrome Company and would later demonstrate the aircraft to the Canadian Army.^[172]

Honorary degrees

Alexander Graham Bell, who could not complete the university program of his youth, received at least a dozen honorary degrees from academic institutions, including eight honorary LL.D.s (Doctorate of Laws), two Ph.D.s, a D.Sc., and an M.D.:^[223]

• Gallaudet College (then named National Deaf-Mute College) in Washington, D.C. (Ph.D.) in 1880^[224][225]
• University of Würzburg in Würzburg, Bavaria (Ph.D.) in 1882^[224]
• Heidelberg University in Heidelberg, Germany (M.D.) in 1886^[224][37]
• Harvard University in Cambridge, Massachusetts (LL.D.) in 1896^[224]
• Illinois College, in Jacksonville, Illinois (LL.D.) in 1896, possibly 1881^[224][226]
• Amherst College in Amherst, Massachusetts (LL.D.) in 1901^[224]
• St. Andrew's University in St Andrews, Scotland (LL.D) in 1902^[224]
• University of Oxford in Oxford, England (D.Sc.) in 1906^[224]
• University of Edinburgh in Edinburgh, Scotland (LL.D.) in 1906^[224][227]
• George Washington University in Washington, D.C. (LL.D.) in 1913^[224]
• Queen's University at Kingston in Kingston, Ontario, Canada (LL.D.) in 1908^[224][228]
• Dartmouth College in Hanover, New Hampshire (LL.D.) in 1913,^[229] possibly 1914^[224]
